NMT (Norgas Meter Technologies)

Slide Slide Slide Slide

NMT N5C

N5 Series

Models: N5A, N5B, N5C & N5D
Manufacturer: NMT (Norgas Meter Technologies)

Designed for use on residential, commercial and industrial applications where vent lines are not required. They can be used outside but need to be protected from the elements.

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 2 PSI
  • Outlet Pressure Range: 7″ – 14″ WC
  • Size Range: 3/8″ – 2″ NPT
  • Approvals: ANSI Z21.80 & CSA 6.22 (Class I)

Norgas Singlemag-Polymer

Norgas SingleMag Polymer

Models: SingleMag
Manufacturer: NMT (Norgas Meter Technologies)

The SingleMag water meter is a highly accurate, long-lasting meter with a pulse output in a compact design. The polymer composite material is made up of a 50 percent nylon blend that has high strength with good rigidity.

  • Capacity Range: 1/4 – 22 GPM (0.06 – 5 m3/hr)
  • Maximum Inlet Pressure: 150 PSI
  • Size Range: 3/4″
  • Water: Cold & Hot
  • Approvals: NSF/ANSI/CAN 61 & 372

Slide Slide Slide

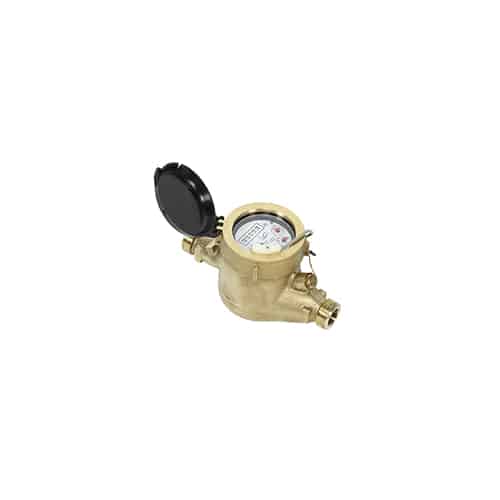

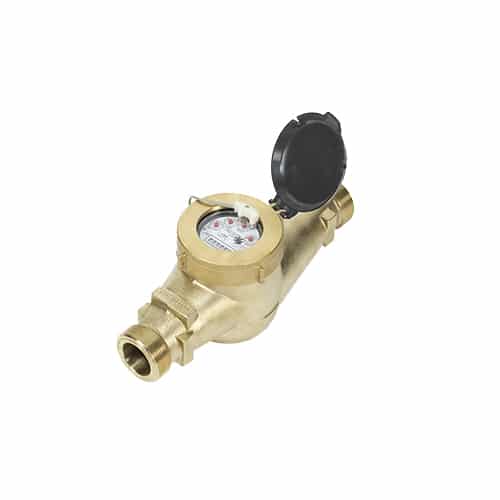

Norgas Multimag

Norgas Multimag

Models: MultiMag
Manufacturer: NMT (Norgas Meter Technologies)

The MultiMag series water meters use multijet principles for accurate water measurement. These water meters are known for their simplicity, accuracy and longevity. Tested to the most recent AWWA C708 accuracy standards, the MultiMag is designed to be used horizontally. The pulse output capability allows for the MultiMag to be used for remote reading. The MultiMag is available in both hot and cold versions, in addition to several sizes.

  • Capacity Range: 1/2 – 160 GPM (0.11 – 36 m3/hr)
  • Maximum Inlet Pressure: 150 PSI
  • Size Range: 3/4″ – 2″
  • Water: Cold & Hot
  • Approvals: NSF/ANSI/CAN 61 & 372

Norgas Versamag-Polymer

Norgas Versamag-Polymer

Models: VersaMag
Manufacturer: NMT (Norgas Meter Technologies)

The polymer Versamag is the most versatile multijet type water meter for submetering applications. The removable register, in addition to its small design, allows for pressure checks and line flushing without damaging the internal components. The Versamag can be mounted in both horizontal and vertical positions while maintaining AWWA C708 precision. With all of these features, the Versamag is the complete meter for any submetering application.

  • Capacity Range: 1/4 – 20 GPM (0.06 – 4.5 m3/hr)
  • Maximum Inlet Pressure: 150 PSI
  • Size Range: 3/4″
  • Water: Cold & Ho
  • Approvals: NSF/ANSI/CAN 61 & 372

Slide Slide

Norgas PD-Mag

Norgas PD-Mag

Models: PD-Mag
Manufacturer: NMT (Norgas Meter Technologies)

The PD-Mag is a No-Lead positive displacement water meter that can be installed horizontally or vertically for applications such as sub-metering and water utility usage monitoring. The PD-Mag meets AWWA C700 requirements and is NSF61 (non-toxic) and NSF372 (toxic) listed (no lead). With optional pulse output, the PD-Mag can also be used with most devices accepting contact closure (reed switch type) inputs such as remote totalizers and wireless transmitters.

  • Capacity Range: 1/2 – 160 GPM (0.11 – 36 m3/hr)
  • Maximum Inlet Pressure: 150 PSI
  • Size Range: 3/4″ – 2″
  • Water: Cold & Hot
  • Approvals: NSF/ANSI/CAN 61 & 372

Norgas TM

Norgas TM

Models: Norgas TM
Manufacturer: NMT (Norgas Meter Technologies)

The TM Series Turbine Meter is a horizontal Woltman-type meter with a long-life design that is suitable for low to moderate non-potable water flows. The TM Series meters meet all of ISO 4064’s performance standards. When remote metering is necessary, a low-frequency pulse output is offered. The TM series is designed to be installed horizontally.

  • Capacity Range: 2 – 2200 GPM (0.45 – 500 m3/hr)
  • Maximum Inlet Pressure: 230 PSI
  • Size Range: 2″ – 8″ (larger sizes available)
  • Water: Cold (non-potable)

Slide Slide

NMT NGRB

NGRB Series

Models: NGRB2 & NGRB3
Manufacturer: NMT (Norgas Meter Technologies)

Designed for applications where accuracy and fast response are critical. It is ideal for commercial/industrial equipment requiring high flow capacities. Internal token relief comes standard.

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 145 PSI
  • Outlet Pressure Range: 7″WC – 21.4 PSI
  • Size Range: 2″ & 3″ Flanged
NGR02_optimized

NMT NGR02

NGR02 Series

Models: NGR02 & NGR02HP
Manufacturer: NMT (Norgas Meter Technologies)

Designed for accurate pressure reductions and comes standard with full internal relief. Used for both indoor and outdoor installations. Optional vent limiter for indoor use available

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 10 – 125 PSI
  • Outlet Pressure Range: 2″WC – 5 PSI
  • Size Range: 1/2″ – 1-1/4″ NPT
  • Approvals: ANSI Z21.80 & CSA 6.22 (Class I & II)
NGR04_optimized

NMT NGR04

NGR04 Series

Models: NGR04 & NGR04HP
Manufacturer: NMT (Norgas Meter Technologies)

Designed for accurate pressure reductions and comes standard with full internal relief. Used for both indoor and outdoor installations. Optional vent limiter for indoor use available

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 10 – 125 PSI
  • Outlet Pressure Range: 3″WC – 3 PSI
  • Size Range: 1-1/4″ – 2″ NPT, 2″ & 3″ Flanged
  • Approvals: ANSI Z21.80 & CSA 6.22 (Class I & II)

Slide Slide

NMT NGR06

NGR06 Series

Models: NGR06
Manufacturer: NMT (Norgas Meter Technologies)

Designed for accurate pressure reductions and comes standard with full internal relief. Used for both indoor and outdoor installations. Optional vent limiter for indoor use available

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 25 – 125 PSI
  • Outlet Pressure Range: 2″WC – 7 PSI
  • Size Range: 1-1/4″ – 2″ NPT, 2″ & 3″ Flanged
  • Approvals: ANSI Z21.80 & CSA 6.22 (Class I & II)

Slide Slide

NMT NGR08

NGR08 Series

Models: NGR08
Manufacturer: NMT (Norgas Meter Technologies)

Designed for accurate pressure reductions and comes standard with full internal relief. Used for both indoor and outdoor installations. Optional vent limiter for indoor use available

  • Minimum Inlet Pressure: 1 PSI
  • Maximum Inlet Pressure: 25 – 125 PSI
  • Outlet Pressure Range: 2″WC – 7 PSI
  • Size Range: 1-1/4″ – 2″ NPT, 2″ & 3″ Flanged
  • Approvals: ANSI Z21.80 & CSA 6.22 (Class I & II)
