Back Pressure Regulators
Back pressure regulators are installed downstream of a pressure reducing regulator and vent excess pressure in case the main regulator fails to close.
BRV Relief
BRV Series
Models: BRV
Manufacturers:
No Name
Designed to vent directly to atmosphere in outdoor installations, these “pop” style relief valves are economical for high pressures with high flows. Brass construction with a weather cap is standard.
- Pressure Range (Setting): 45 – 250 PSI
- Maximum Inlet Pressure: 400 PSI
- Size Range: 3/4″ & 1″ NPT
MCS pop relief
MCS Series
Models: AF, AM, BF, BM, CF & CM
Manufacturers:
No Name
With a variety of sizes and options available, these “pop” style relief valves can be used both outdoors & indoors. Cast iron construction is standard and a weather cap is available.
- Pressure Range (Setting): 0.5 – 300 PSI
- Maximum Inlet Pressure: 500 PSI
- Size Range: 3/4″ – 2″ NPT

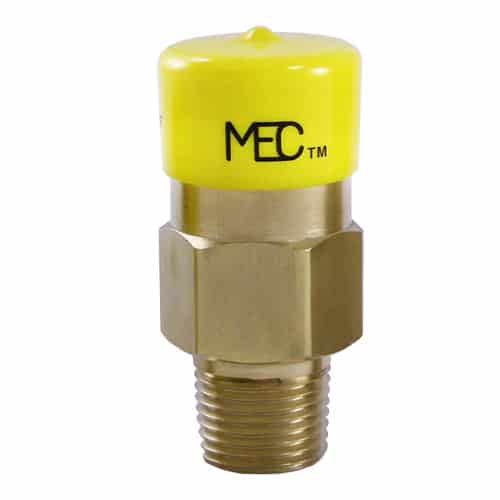

MEV & MEH Series
Models: MEV25, MEV50, MEV75, MEV125, MEV250, MEH25, MEH225, MEH50 & MEH75
Manufacturers:
Marshall Excelsior
Designed for installation in stationary ASME applications such as bulk plant, skid tanks, underground and above ground containers as the primary pressure relief valve.
- Pressure Range (Setting): 60 – 460 PSI
- Maximum Inlet Pressure: Varies
- Size Range: 1/4″ – 2-1/2″ NPT
Marshall Excelsior 1289
1289 Series
Models: 1289H, 1289HH & 1289L
Manufacturers:
Marshall Excelsior
Designed for high flow capacities using a large diaphragm and pitot tube booster. Its quick response and throttling capabilities make it ideal for commercial/industrial heating equipment requiring reliable protection.
- Pressure Range (Setting): 7″WC – 75 PSI
- Maximum Inlet Pressure: 25 – 100 PSI
- Size Range: 1″ & 2″ NPT
Bryan Donkin 225LP
225LP & 201 Series
Models: 225LP, 225LP2, 225LP4 & 201
Manufacturers:
Bryan Donkin
Designed for low flow capacities in a compact design. Its quick response and throttling capabilities make it ideal for commercial/industrial heating equipment requiring reliable protection.
- Pressure Range (Setting): 12″WC – 150 PSI
- Maximum Inlet Pressure: 30 – 375 PSI
- Size Range: 3/4″ – 2″ NPT, 2″ Flanged
Marshall Excelsior 198H
198H Series
Models: 198H
Manufacturers:
Marshall Excelsior
A back pressure regulator designed for a large variety of process applications. Used for any type of industry and ideal for liquids, air as well as gas applications.
- Pressure Range (Setting): 15 – 200 PSI
- Maximum Inlet Pressure: 300 PSI
- Size Range: 3/4″ & 1″ NPT
CVS 630R
630R Series
Models: 630R(LP) & 630R(HP)
Manufacturers:
CVS
Designed for heavy duty applications. All cast iron construction with stainless steel trim as standard. Steel construction and viton diaphragm also available for high temperatures.
- Pressure Range (Setting): 3 – 250 PSI
- Maximum Inlet Pressure: 250 PSI Above Set Point
- Size Range: 1″ & 2″ NPT, 1″ & 2″ Flanged
- Approvals: CRN
Richards GV
GV Series Gas Vent
Models: GV
Manufacturers:
Richards
Designed to keep water, insects and debris out of all relief piping. The screen is designed to blow out in relief if it has become blocked. Other models are available.
